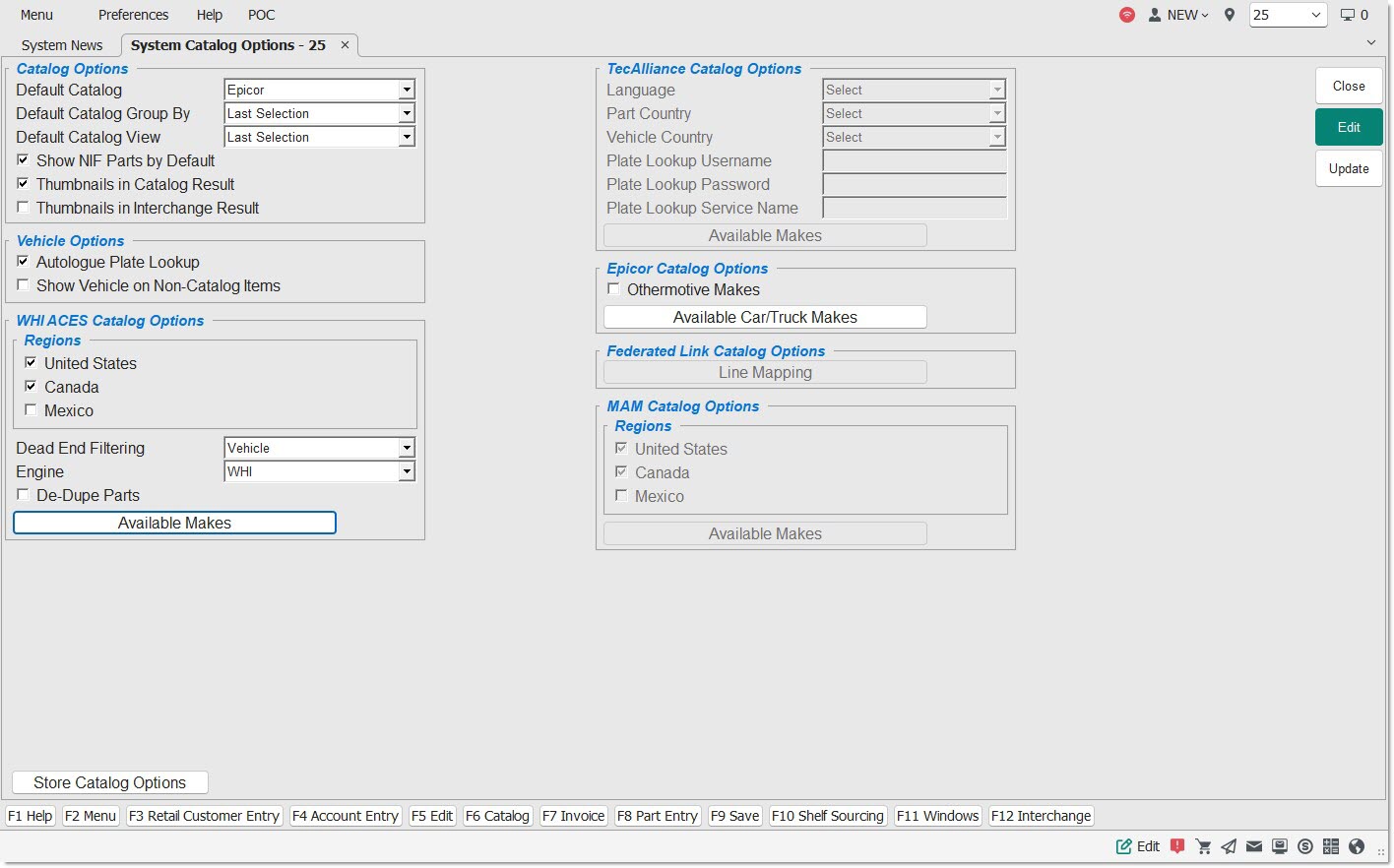

System Catalog Options

The SYSTEM CATALOG OPTIONS screen is used to change catalog controls throughout all stores in a system.



Menu Path: Controls, System, Catalog Setup, Catalog Options, SYSTEM CATALOG OPTIONS screen



Catalog Options

DEFAULT CATALOG

Sets the default catalog.



If not set manually, the default catalog for invoicing is determined in the following order:



  • 'WHI NCC'
  • 'WHI ACES' / WHI Legacy / Epicor / JX
  • 'Epicor'
  • 'Federated Link'
  • 'MAM'
  • 'Alliance AST'



This drop-down is unavailable if only one catalog is configured.



DEFAULT CATALOG GROUP BY

Drop-down menu with the following choices:



  • 'Last Selection' (default) - Keeps the setting in the Catalog 'MENU' of the last selection made.
  • 'Part Type (A to Z)' - Groups the catalog results by part type, in alphabetical order by type.
  • 'Part Type (Brand Priority)' - Groups the catalog results by part type, but not in alphabetical order, but by brand priority.
  • 'Catalog Brand' - Groups the catalog results by the brand from the chosen catalog.
  • 'Store Line Code' - Groups the catalog results by the line code.



DEFAULT CATALOG VIEW

Drop-down menu with the following choices:



  • 'LAST SELECTION' (default) - Keeps the setting in the Catalog 'MENU' of the last selection made.
  • 'FULL' - Shows descriptive information coming from the catalog database for each part on the CATALOG results screen.
  • 'COMPACT' - Does not show descriptive information coming from the catalog database for each part on the CATALOG results screen.



Note: Part description fields from either the part record or the catalog show for each part, regardless of this setting.



Note: The 'CATALOG DESCRIPTION ON SCREEN' setting from the STORE CATALOG OPTIONS screen controls which description displays.



SHOW NIF PARTS BY DEFAULT

Switch that determines whether returned NIF parts are initially hidden or displayed.



  • When checked, NIF parts will be displayed in the search results after searching for a part in a catalog.
  • When unchecked, NIF parts will not be displayed in the search results after searching for a part in the catalog.



Note: It is still possible to toggle NIF parts to display the parts in the CATALOG screen, this switch just determines the default.



THUMBNAILS IN CATALOG RESULT

Checkbox that determines whether or not thumbnail images are shown in the catalog results:



  • Checked (default) - Thumbnail images are shown in the catalog results for each part, where available.
  • Unchecked - Thumbnail images are not shown in the catalog results.



Note: Only shows thumbnail images when the screen is in 'FULL' view. If checked, and the screen is in 'COMPACT' view, will not show thumbnail images.



THUMBNAILS IN INTERCHANGE RESULT

Checkbox that determines whether or not thumbnail images are shown in the Interchange results:



  • Checked - Thumbnail images are shown in the 'Interchange' window for each part, where available.
  • Unchecked (default) - Thumbnail images are not shown in the 'Interchange' window.

Vehicle Options

AUTOLOGUE PLATE LOOKUP

Allows use of the Autologue plate lookup service when checked for the selected catalog. This is a fee-based feature. Contact customer support for more information.



SHOW VEHICLE ON NON-CATALOG ITEMS

Determines whether or not the vehicle information is displayed.



  • Checked - When the line item is not added through a catalog lookup, the system displays the vehicle information in the 'VEHICLE' column on the right side of the invoice body that was entered using the 'VEHICLES' button located in the 'VEHICLE' tab.
  • Unchecked - Does not display vehicle information.



Note: If there is no catalog lookup, choose a vehicle using the 'VEHICLES' button before adding a line item to the invoice reference for the vehicle information to display in the 'VEHICLE' column of the invoice body.



Note: This information also displays above the 'BILL TO:' and 'SHIP TO:' fields on the INVOICE screen.

WHI ACES Catalog Options

Regions

United States
Determines the region used for the vehicle in the catalog lookup. The catalog will return the year, make, model and engine associated with the region of each checkbox that is checked.


Multiple of these checkboxes can be checked at once.


Canada
Determines the region used for the vehicle in the catalog lookup. The catalog will return the year, make, model and engine associated with the region of each checkbox that is checked.


Multiple of these checkboxes can be checked at once.


Mexico
Determines the region used for the vehicle in the catalog lookup. The catalog will return the year, make, model and engine associated with the region of each checkbox that is checked.


Multiple of these checkboxes can be checked at once.



DEAD END FLITERING

Determines whether or not the UDCF file is used to filter the 'GROUP', 'SUBGROUP', or 'PART TYPE' drop-down fields.



Options are:



  • 'VEHICLE' - System checks, even if a line is not set up in the DCF for the lookup, as long as a vehicle could have a part come up in the selected group, subgroup or part type.



Note: If a part type has no brand set up in the primary DCF but does have a brand set up in the secondary DCF, the part type still displays in the 'PART TYPE' drop-down in the CATALOG screen.



  • 'VEHICLE AND DCF' - System checks what lines are set up in the primary DCF file and only displays a group, subgroup or part type if the lines set up in the DCF have results for that group, subgroup or part type.



Note: If a part type has no brand set up in the primary DCF but does have a brand set up in the secondary DCF, the part type will not display in the 'PART TYPE' drop-down in the CATALOG screen.



ENGINE

Determines whether an engine lookup is performed by the ACES or WHI Catalog.



Options are:



  • 'ACES' - Provides a more user-friendly format for engine choices in the 'ENGINE' drop-down while doing a catalog lookup. Some lookups have fewer engine options that may result in the user being prompted with a counterman question later, if relevant. An engine does not display multiple times with different 'VIN' codes. If the 'VIN' code is required to determine the correct part, a counterman question prompts the user.
  • 'WHI' - Provides engine choices in the 'ENGINE' drop-down while doing a catalog lookup. The same engine displays multiple times with different 'VIN' codes.



DE-DUPE PARTS

When checked, prevents NIF part duplication from occurring in the catalog lookup results.



When unchecked, does not prevent NIF part duplication from showing in the catalog lookup results, and displays all results.

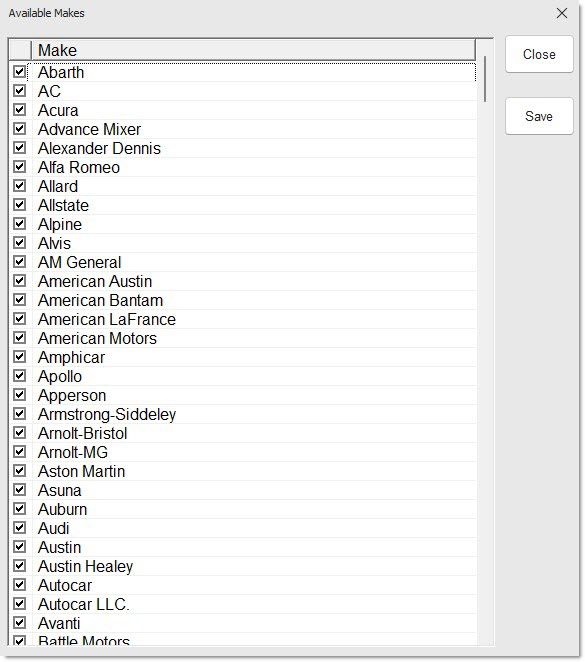

AVAILABLE MAKES

This button opens a pop-up that allows the selection of which makes to display in the 'MAKE' drop-down on the CATALOG screen.





Any checked makes will display in the 'MAKE' drop-down on the CATALOG screen.



Unchecked makes will not display in the 'MAKE' drop-down, but can still be looked up when doing a vehicle search by 'VIN' or 'PLATE'.

TecAlliance Catalog Options

LANGUAGE

Determines the output language of the catalog results.



PART COUNTRY

Allows selection of the default country for parts that are returned from the catalog.



Note: This drop-down is populated from the available countries in the catalog.


VEHICLE COUNTRY
Allows selection of the default country for vehicles that are returned from the catalog.



Note: This drop-down is populated from the available countries in the catalog.


PLATE LOOKUP USERNAME
Indicates the user's username for the billable plate lookup feature.



Note: If this field is not populated, the field on the CATALOG screen will be labeled 'VIN', and plate lookup will not be available.


PLATE LOOKUP PASSWORD

Indicates the user's password for the billable plate lookup feature.



Note: If this field is not populated, the field on the CATALOG screen will be labeled 'VIN', and plate lookup will not be available.


PLATE LOOKUP SERVICE NAME
Indicates the user's purchased service for the billable plate lookup feature.



Note: If this field is not populated, the field on the CATALOG screen will be labeled 'VIN', and plate lookup will be unavailable.



AVAILABLE MAKES

This button opens a pop-up that allows the selection of which makes to display in the 'MAKE' drop-down on the CATALOG screen.





Any checked makes will display in the 'MAKE' drop-down on the CATALOG screen.



Unchecked makes will not display in the 'MAKE' drop-down, but can still be looked up when doing a vehicle search by 'VIN' or 'PLATE'.

Epicor Catalog Options

OTHERMOTIVE MAKES

Determines if, when using the Epicor Catalog, othermotive make options (such as sport vehicles) display in the 'Available Makes' pop-up.



  • Checked - Displays sport vehicle makes and othermotive makes in the 'Available Makes' pop-up, and the 'Make' field on the CATALOG screen.

  • Unhecked - Does not display sport vehicle makes and othermotive makes in the 'Available Makes' pop-up, and the 'Make' field on the CATALOG screen.



AVAILABLE CAR/TRUCK MAKES

This button opens a pop-up that allows the selection of which makes to display in the 'MAKE' drop-down on the CATALOG screen.





Any checked makes will display in the 'MAKE' drop-down on the CATALOG screen.



Unchecked makes will not display in the 'MAKE' drop-down, but can still be looked up when doing a vehicle search by 'VIN' or 'PLATE'.

Federated Link Catalog Options

LINE MAPPING

Click the FEDERATED LINK LINE MAPPING button, and a pop-up opens.



This pop-up allows the linking of the line codes from Federated ('Federated Link Line' column) to the line codes for the store ('My Line' column).



Clicking the 'Delete' button removes the selected line codes from the grid.



Clicking the 'Update' button saves the changes made.



Clicking the 'Close' button closes the pop-up.

MAM Catalog Options

Regions

United States
Determines the region used for the vehicle in the catalog lookup. The catalog will return the year, make, model and engine associated with the region of each checkbox that is checked.


Multiple of these checkboxes can be checked at once.



Canada
Determines the region used for the vehicle in the catalog lookup. The catalog will return the year, make, model and engine associated with the region of each checkbox that is checked.


Multiple of these checkboxes can be checked at once.



Mexico
Determines the region used for the vehicle in the catalog lookup. The catalog will return the year, make, model and engine associated with the region of each checkbox that is checked.


Multiple of these checkboxes can be checked at once.



AVAILABLE MAKES

This button opens a pop-up that allows the selection of which makes to display in the 'MAKE' drop-down on the CATALOG screen.





Any checked makes will display in the 'MAKE' drop-down on the CATALOG screen.



Unchecked makes will not display in the 'MAKE' drop-down, but can still be looked up when doing a vehicle search by 'VIN' or 'PLATE'.
